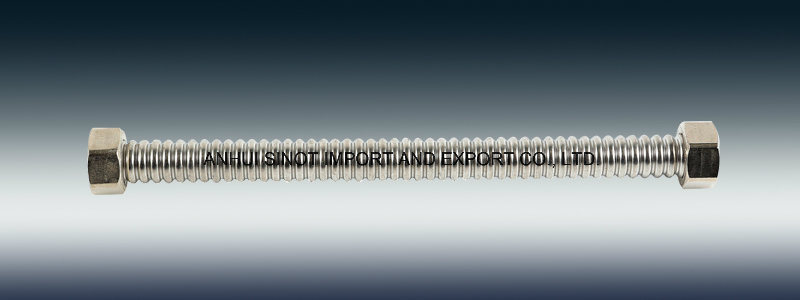

Corrugated Stainless Steel Water Tube Dn32 1 1/2"

Quantity:
Article: Corrugated Stainless Steel Hose for water
Standard: EN ISO 10380
JIS
Material: AISI304 (1.4301 EN ISO 10380)
Application: Plumbing and heating (full suitability for drinking water)
hydro-thermo-sanitary plants for the supply of cold and hot water,
supply of fluids in industrial plants
connection of stationary appliances
Industrial fluids
Specification:
Corrugated Stainless Steel Water Tube Dn32 1 1/2
Nominal Diameter I.D. Thickness Pitch O.D. Length Nominal pressure PN Max. operative temperature
A B
DN10 3/8" 9.3 0.20~0.26 3.0 12.2 0.1m~100m 15bar -200°C ~550°C
DN12 1/2" 12.0 0.22~0.30 5.0 15.8 0.1m~100m 15bar -200°C ~550°C
DN15 3/4" 15.8 0.22~0.30 5.5 20.0 0.1m~100m 15bar -200°C ~550°C
DN20 1" 19.7 0.21~0.30 6.4 25.0 0.1m~100m 15bar -200°C ~550°C
DN25 1-1/4" 26.5 0.30~0.35 7.1 33.0 0.1m~50m 15bar -200°C ~550°C
DN32 1-1/2" 33.0 0.35~0.35 7.6 41.0 0.1m~30m 15bar -200°C ~550°C
DN40 2" 40.0 0.35 8.8 47.7 0.1m~30m 15bar -200°C ~550°C
DN50 2 1/2" 51.00 0.40 9.4 61.0 0.1m~30m 15bar -200°C ~550°C

Corrugated Stainless Steel Water Tube Dn32 1 1/2


Corrugated Stainless Steel Water Tube Dn32 1 1/2
Corrugated Stainless Steel Water Tube Dn32 1 1/2
