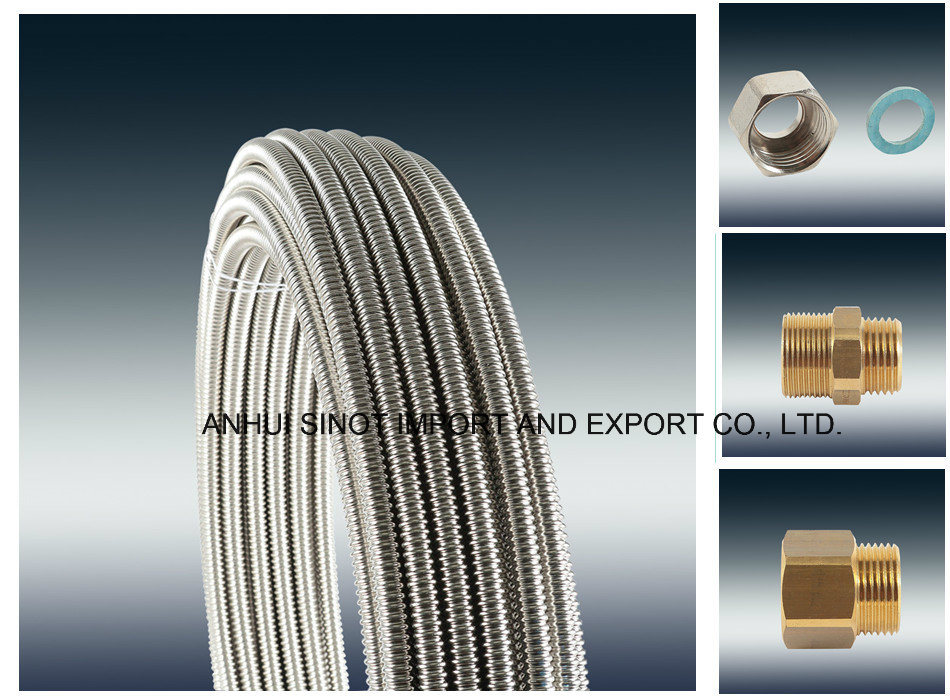

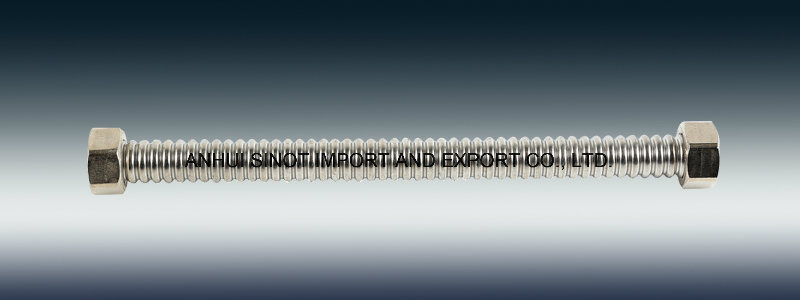

| Article: | Corrugated Stainless Steel Hose for water |
| Standard: | EN ISO 10380 JIS |
| Material: | AISI304 (1.4301 EN ISO 10380) |
| Application: | Plumbing and heating (full suitability for drinking water) hydro-thermo-sanitary plants for the supply of cold and hot water, supply of fluids in industrial plants connection of stationary appliances Industrial fluids |
| Nominal Diameter | I.D. | Thickness | Pitch | O.D. | Length | Nominal pressure PN | Max. operative temperature | |
| A | B | |||||||
| DN10 | 3/8" | 9.3 | 0.20~0.26 | 3.0 | 12.2 | 0.1m~100m | 15bar | -200°C ~550°C |
| DN12 | 1/2" | 12.0 | 0.22~0.30 | 5.0 | 15.8 | 0.1m~100m | 15bar | -200°C ~550°C |
| DN15 | 3/4" | 15.8 | 0.22~0.30 | 5.5 | 20.0 | 0.1m~100m | 15bar | -200°C ~550°C |
| DN20 | 1" | 19.7 | 0.21~0.30 | 6.4 | 25.0 | 0.1m~100m | 15bar | -200°C ~550°C |
| DN25 | 1-1/4" | 26.5 | 0.30~0.35 | 7.1 | 33.0 | 0.1m~50m | 15bar | -200°C ~550°C |
| DN32 | 1-1/2" | 33.0 | 0.35~0.35 | 7.6 | 41.0 | 0.1m~30m | 15bar | -200°C ~550°C |
| DN40 | 2" | 40.0 | 0.35 | 8.8 | 47.7 | 0.1m~30m | 15bar | -200°C ~550°C |
| DN50 | 2 1/2" | 51.00 | 0.40 | 9.4 | 61.0 | 0.1m~30m | 15bar | -200°C ~550°C |
| Article: | Corrugated Stainless Steel Hose for water |
| Standard: | EN ISO 10380 JIS |
| Material: | AISI304 (1.4301 EN ISO 10380) |
| Application: | Plumbing and heating (full suitability for drinking water) hydro-thermo-sanitary plants for the supply of cold and hot water, supply of fluids in industrial plants connection of stationary appliances Industrial fluids |
| Nominal Diameter | I.D. | Thickness | Pitch | O.D. | Length | Nominal pressure PN | Max. operative temperature | |
| A | B | |||||||
| DN10 | 3/8" | 9.3 | 0.20~0.26 | 3.0 | 12.2 | 0.1m~100m | 15bar | -200°C ~550°C |
| DN12 | 1/2" | 12.0 | 0.22~0.30 | 5.0 | 15.8 | 0.1m~100m | 15bar | -200°C ~550°C |
| DN15 | 3/4" | 15.8 | 0.22~0.30 | 5.5 | 20.0 | 0.1m~100m | 15bar | -200°C ~550°C |
| DN20 | 1" | 19.7 | 0.21~0.30 | 6.4 | 25.0 | 0.1m~100m | 15bar | -200°C ~550°C |
| DN25 | 1-1/4" | 26.5 | 0.30~0.35 | 7.1 | 33.0 | 0.1m~50m | 15bar | -200°C ~550°C |
| DN32 | 1-1/2" | 33.0 | 0.35~0.35 | 7.6 | 41.0 | 0.1m~30m | 15bar | -200°C ~550°C |
| DN40 | 2" | 40.0 | 0.35 | 8.8 | 47.7 | 0.1m~30m | 15bar | -200°C ~550°C |
| DN50 | 2 1/2" | 51.00 | 0.40 | 9.4 | 61.0 | 0.1m~30m | 15bar | -200°C ~550°C |
