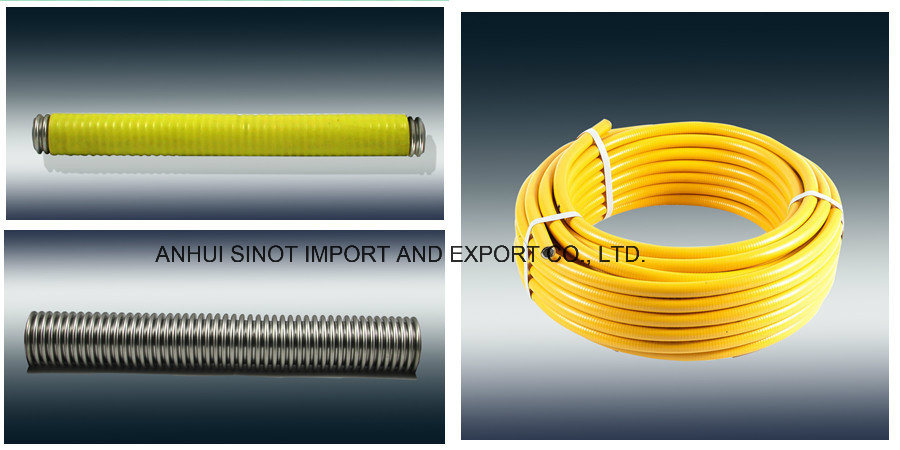

Article: | Corrugated Stainless Steel Gas Hose (coated) |
Standard: | EN15266 DVGW G 5616 EN ISO 10380 JIS |
Material: | AISI304 (1.4301 EN ISO 10380) AISI316L (1.4301 EN ISO 10380) |
Application: | Plants for supply of gas in building Connection of fixed gas appliances |

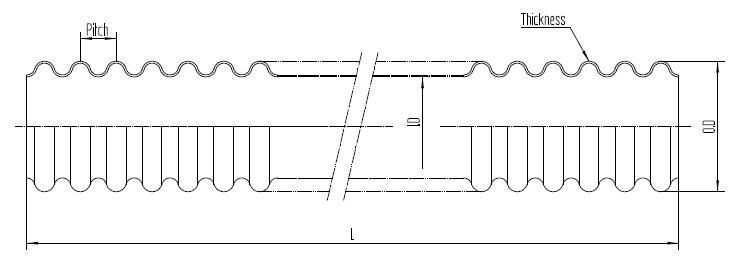

Nominal Diameter | I.D. | Thickness | Pitch | O.D. | Length | Max. Operative Pressure | |
A | B | ||||||
DN12 | 1/2" | 12.0 | 0.22~0.30 | 5.0 | 15.8 | 0.1m~100m | 0.5bar |
DN15 | 3/4" | 15.8 | 0.22~0.30 | 5.5 | 20.0 | 0.1m~100m | 0.5bar |
DN20 | 1" | 19.7 | 0.21~0.30 | 6.4 | 25.0 | 0.1m~100m | 0.5bar |
DN25 | 1-1/4" | 26.5 | 0.30~0.35 | 7.1 | 33.0 | 0.1m~50m | 0.5bar |
DN32 | 1-1/2" | 33.0 | 0.35~0.35 | 7.6 | 41.0 | 0.1m~30m | 0.5bar |
DN40 | 2" | 40.0 | 0.35 | 8.8 | 47.7 | 0.1m~30m | 0.5bar |
DN50 | 2 1/2" | 51.00 | 0.40 | 9.4 | 61.0 | 0.1m~30m | 0.5bar |
