Dn25-1 1/4" Stainless Steel AISI304/316L Corrugated Gas Pipe

Quantity:

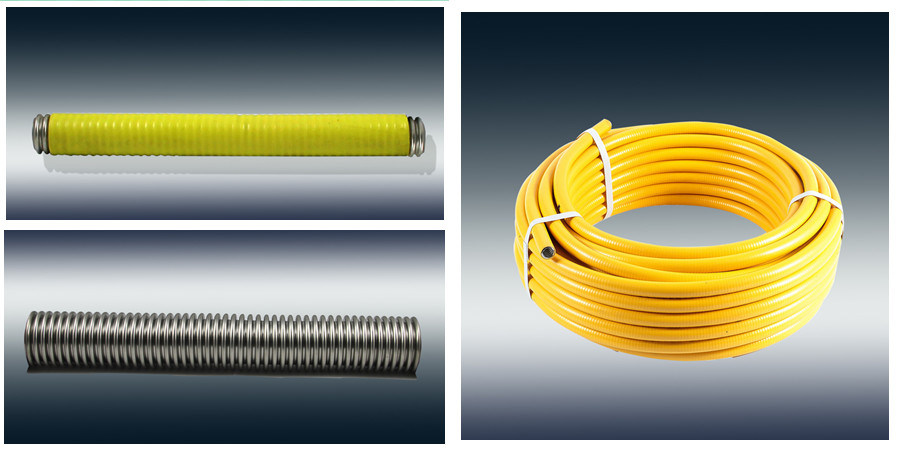

Article: Corrugated Stainless Steel Gas Hose (naked)
Standard: EN15266
DVGW G 5616
EN ISO 10380
JIS
Material: AISI304 (1.4301 EN ISO 10380)
AISI316L (1.4301 EN ISO 10380)
Application: Plants for supply of gas in building
Connection of fixed gas appliances
Specification:
Dn25-1 1/4
Nominal Diameter I.D. Thickness Pitch O.D. Length Max. Operative Pressure
A B
DN12 1/2" 12.0 0.22~0.30 5.0 15.8 0.1m~100m 0.5bar
DN15 3/4" 15.8 0.22~0.30 5.5 20.0 0.1m~100m 0.5bar
DN20 1" 19.7 0.21~0.30 6.4 25.0 0.1m~100m 0.5bar
DN25 1-1/4" 26.5 0.30~0.35 7.1 33.0 0.1m~50m 0.5bar
DN32 1-1/2" 33.0 0.35~0.35 7.6 41.0 0.1m~30m 0.5bar
DN40 2" 40.0 0.35 8.8 47.7 0.1m~30m 0.5bar
DN50 2 1/2" 51.00 0.40 9.4 61.0 0.1m~30m 0.5bar

Dn25-1 1/4

Dn25-1 1/4


Dn25-1 1/4
