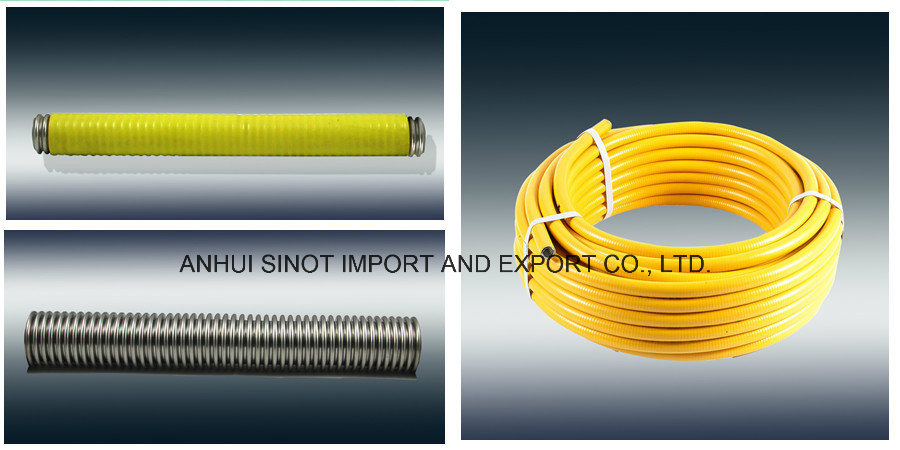

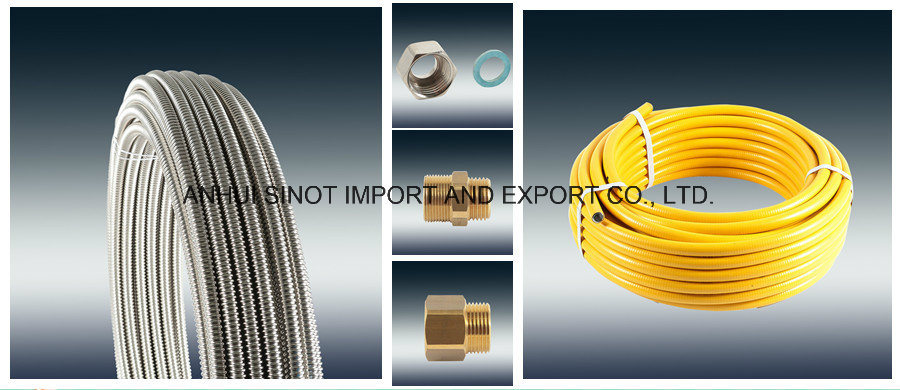

Corrugated Stainless Steel AISI304/316L Coated Gas Pipe Dn32 - 1 1/2"

Quantity:
Article: Corrugated Stainless Steel Gas Hose (Coated)
Standard: EN15266
JIS
DIN
Material: AISI304 (1.4301 EN ISO 10380)
AISI316L (1.4301 EN ISO 10380)
Cover: LDPE (low density PE), thickness: 0.50~0.60
PVC, thickness: >0.50mm
Application: Plants for supply of gas in building
Connection of fixed gas appliances

Specification:
Corrugated Stainless Steel AISI304/316L Coated Gas Pipe Dn32 - 1 1/2
Nominal Diameter I.D. Thickness Pitch O.D. Length Max. Operative Pressure
A B
DN12 1/2" 12.0 0.22~0.30 5.0 15.8 0.1m~100m 0.5bar
DN15 3/4" 15.8 0.22~0.30 5.5 20.0 0.1m~100m 0.5bar
DN20 1" 19.7 0.21~0.30 6.4 25.0 0.1m~100m 0.5bar
DN25 1-1/4" 26.5 0.30~0.35 7.1 33.0 0.1m~50m 0.5bar
DN32 1-1/2" 33.0 0.35~0.35 7.6 41.0 0.1m~30m 0.5bar
DN40 2" 40.0 0.35 8.8 47.7 0.1m~30m 0.5bar
DN50 2 1/2" 51.00 0.40 9.4 61.0 0.1m~30m 0.5bar

Corrugated Stainless Steel AISI304/316L Coated Gas Pipe Dn32 - 1 1/2

Corrugated Stainless Steel AISI304/316L Coated Gas Pipe Dn32 - 1 1/2


Corrugated Stainless Steel AISI304/316L Coated Gas Pipe Dn32 - 1 1/2
